Tachometer Calibrator Catalog

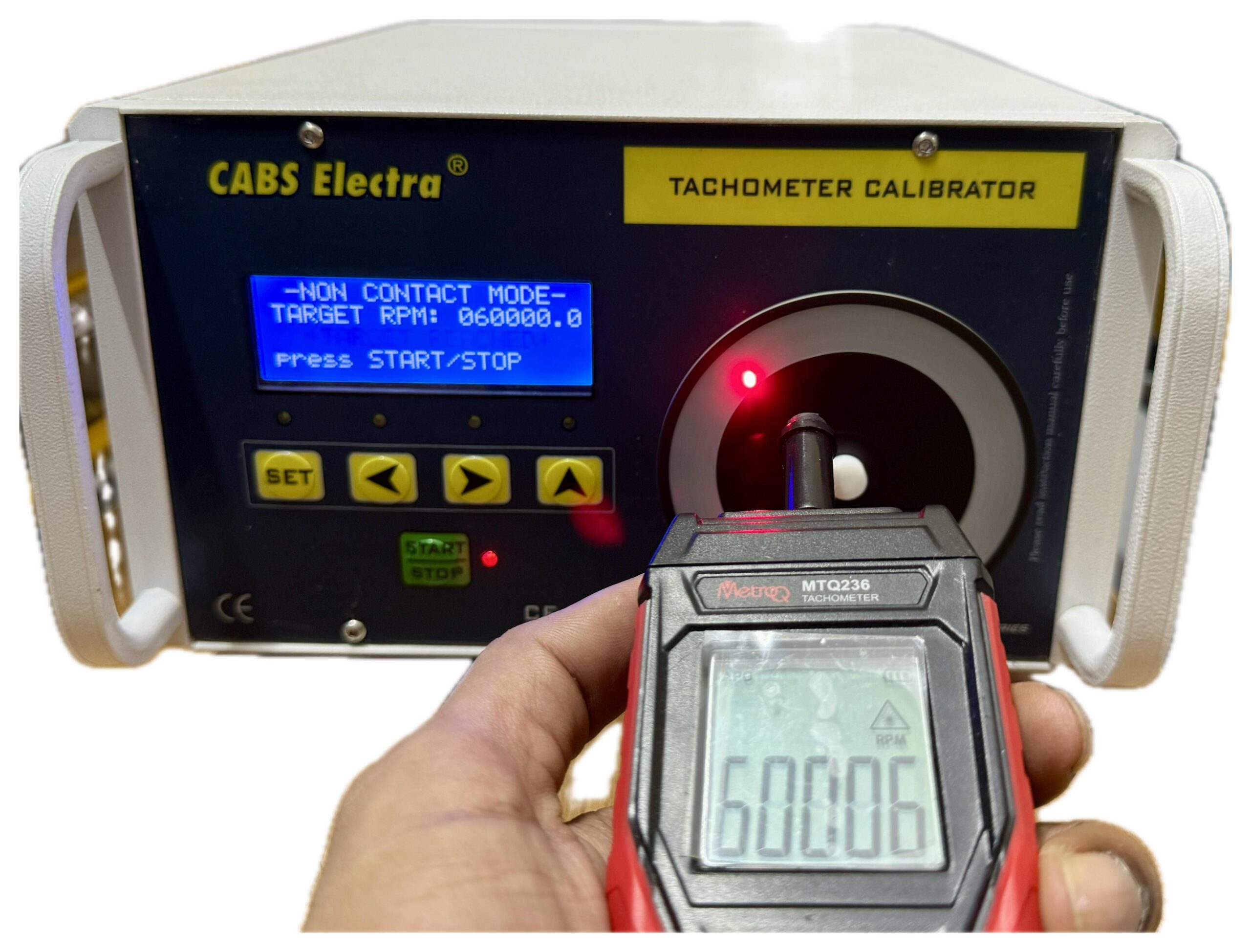

The CE 0102TMC-2 is a high-precision reference RPM source for validating both contact and non-contact tachometers
It delivers true, programmable RPM from (contact, ±0.3 RPM) and 20.0–5050.0 RPM20.0–101000.0 RPM (non-contact, ±5.0 RPM), with clear 20×4 LCD prompts, fast digit-wise entry, and audible/visual confirmation at target.

POWER SUPPLY: 230 V AC @ 50 Hz
RANGES:
20 to 5050 RPM Contact
20 to 5000 RPM Non-Contact
5000 to 101000 RPM Non-Contact
RESOLUTION:
0.1 RPM for Contact Type
0.1 RPM for Non- Contact Type
DISPLAY 20 × 4 LCD Display
ACCURACY:
CONTACT: ±0.3 RPM
NON-CONTACT: ±5.0 RPM
SPEED STABILITY: 0.1% of reading (With or Without Contact Load)
USER CONTROL: Power ON/OFF by Toggle switch
RPM setting by </> ^ & SET switches
DIMENSIONS: 240mm(W) × 320mm(D) × 135mm(H)
5 Kg Approx.
